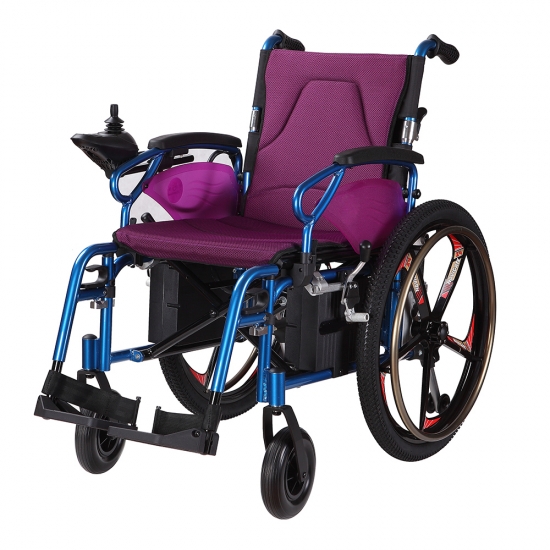

Travel portable folding power electric wheelchair

  • Item NO. :BW22028
  • Unit Weight :45.4
  • Weight Capacity :115
  • Battery :2pcs 12v-16vAH
  • Motor :2x24v 200W
  • Size(L x W x H) :115x41x97 cm
    • The Folding electric wheelchair was ideal for indoor and outdoor daily use, perfect for medium size distance travel.
    • Features a revolutionary design that includes foldable frames, making the wheelchair quite portable that you bring with you wherever you go.

Product Details Leave a message

Do you wish to have a portable power wheelchair that can be folded and placed in a car trunk?

To meet your needs, the travel electric wheelchair ( BW22028 ) features a revolutionary design that includes foldable frames, making the wheelchair quite portable that you bring with you wherever you go.

Ideal for indoor and outdoor daily use, perfect for medium size distance travel.

Big pneumatic tire with carbon fiber spokes to provide the freedom for navigating the urban jungle with care free travel.

Frame is designed to match two types battery, gel battery and lithium battery.

BW22028 A Gel battery, Healthwalkaids control

BW22028 B Lithium battery, PG control



FEATURES

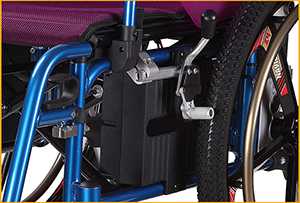

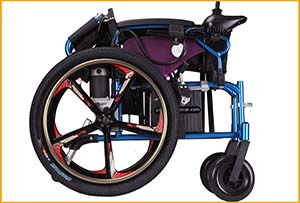

Divided Battery Mounted

on Both Sides

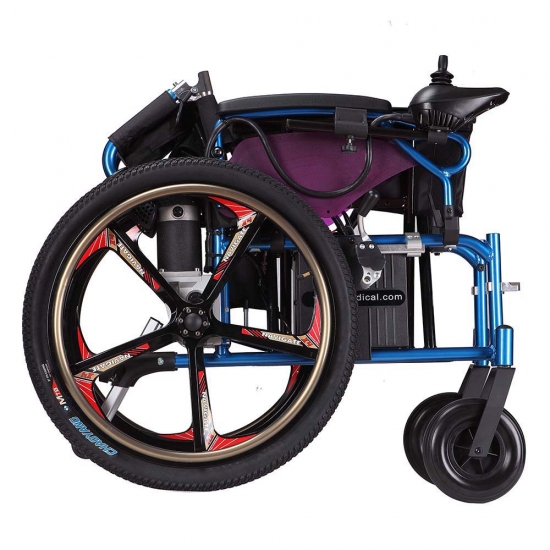

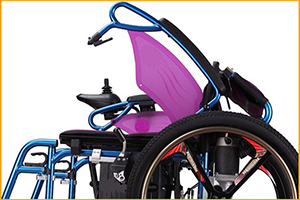

Foldable Backrest

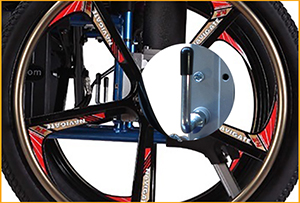

Can Switch to Manual

Wheelchair

l   Make the chair foldable, just pull up the seat, no need remove the battery.

l   Old design places battery under the seat, which can not realize folding the chair.

l   Reduce the storage space, foldable frame and foldable backrest makes this chair very small.

l   It can put into a car trunk for travel.

l   This wheelchair can be a manual wheelchair,just switch a handle to another direction.

l   So we never worry about running out of battery.


FUNCTIONS

________________________________________________________________________________________________________________________________________________________________________

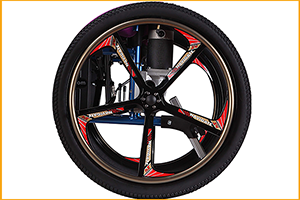

Mountain Tyre with Magnesium Integrated Molding Inner Ring

This tyre wide and big with deep patterns, make you feel more comfortable when going on rough road,

so it is the best choice for outdoor use. The magnesium integrated inner ring luxury and strong.


Flip-up Armrest
The armrests can be flip up back to let you sit closer to tables, and also easier lateral.

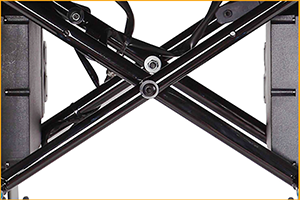

Rigidity

Reinforce double cross brace.

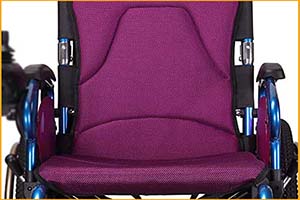

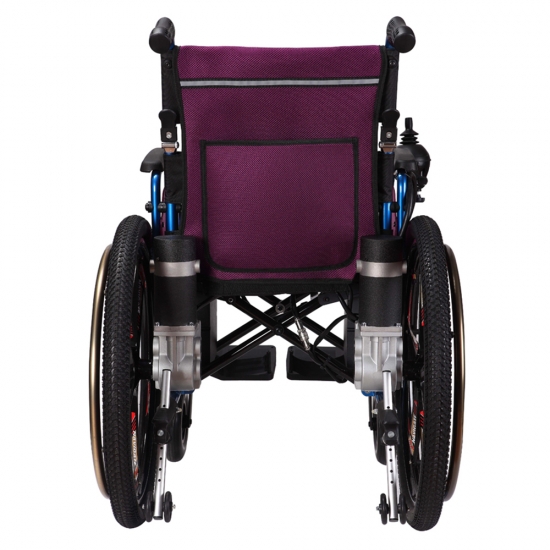

Detachable Seat and Back with Pocket
Padded and soft seat and back, ventilate, better to long seating people.




SPECIFICATIONS

_______________________________________________________________________________________________________________________________________________________________________





BW22028A

BW22028B

Speed

1~6km per hour

1~6km per hour

Ranges

22~25km

15km

Charging Time

7~8 hours

7~8 hours

Mini Turning Radius

500mm

500mm

Charger

100-240W 15A 50-60HZ

100-240W 15A 50-60HZ

Control

35A

35A

Motor

2x24V 200W

2x24V 200W

Battery

2pcs 12V 16AH Acid

2pcs 12V 8AH Li

Unit Weight (include battery)

45.4kg

35kg

Weight Capacity

115kg

115kg

Obstacle Height (cm)

5

5

Seat W*D*H (cm)

46x40x50

46x40x50

Footrest Length (cm)

40~53

40~53

Arm Height (cm)

25

25

Back Height (cm)

43

43

Overall L*W*H (cm)

115x62x97

115x62x97

Folded Width (cm)

41

41


ACCESSORIES & OPTIONS

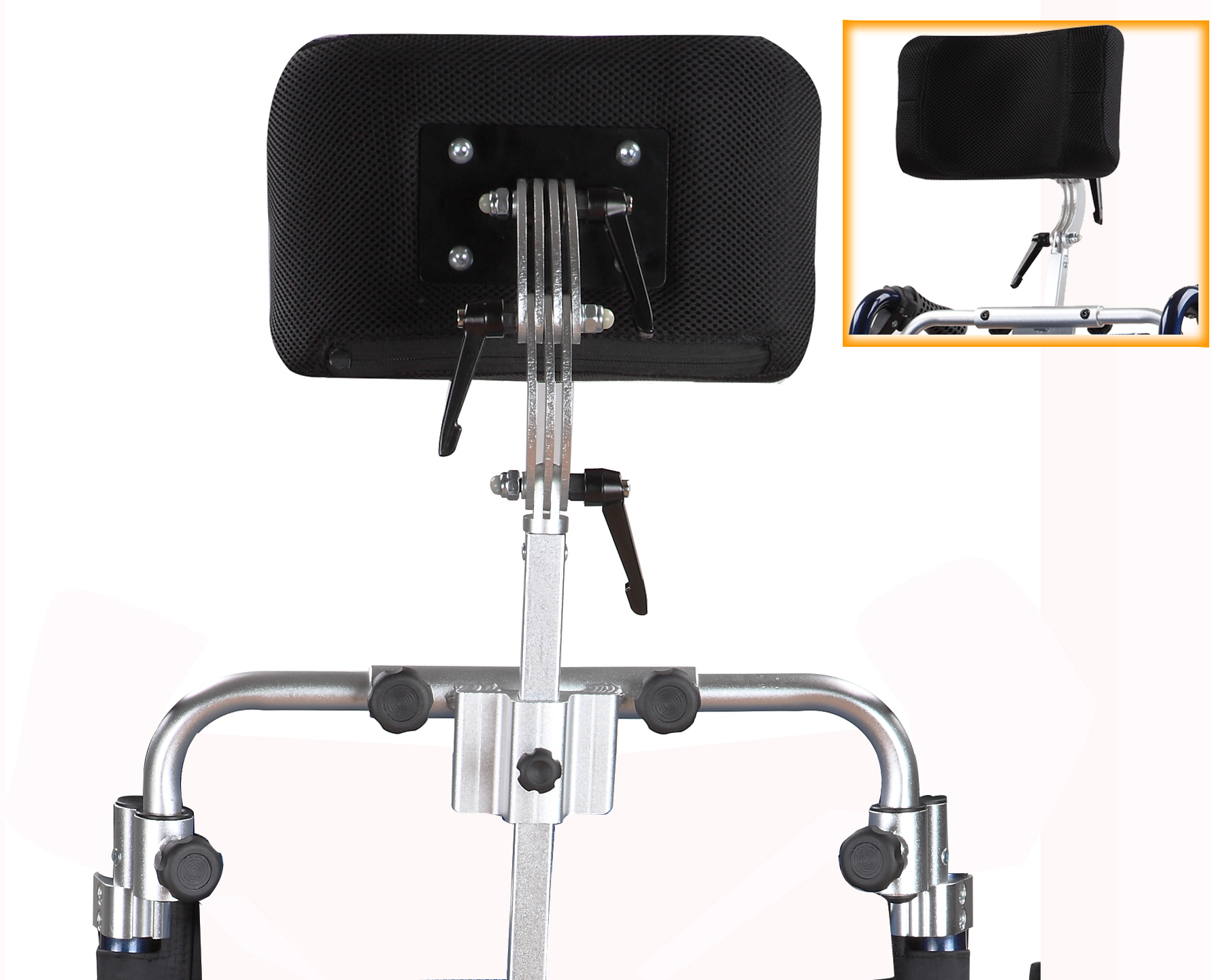

Angle & Height Adjustable

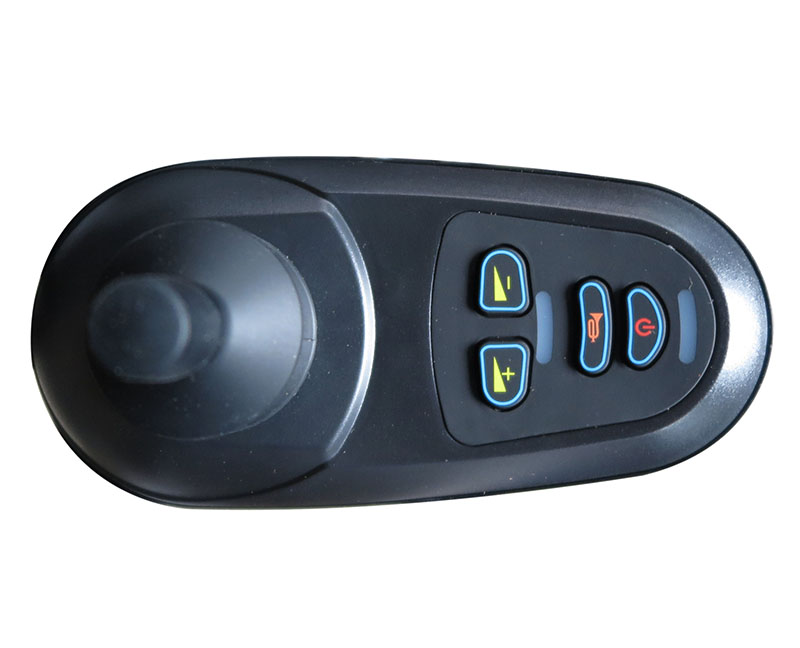

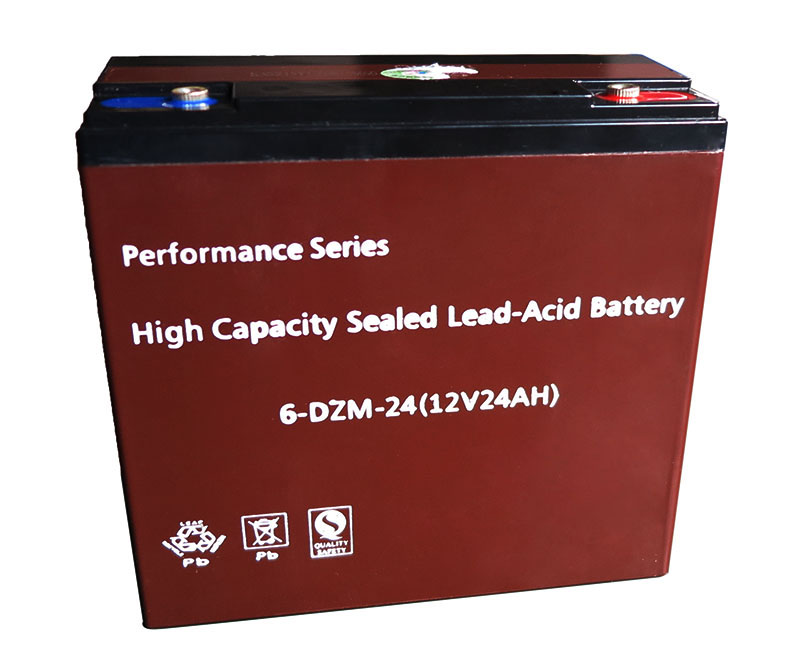

Healthwalkaids control Sealed Lead Acid Battery

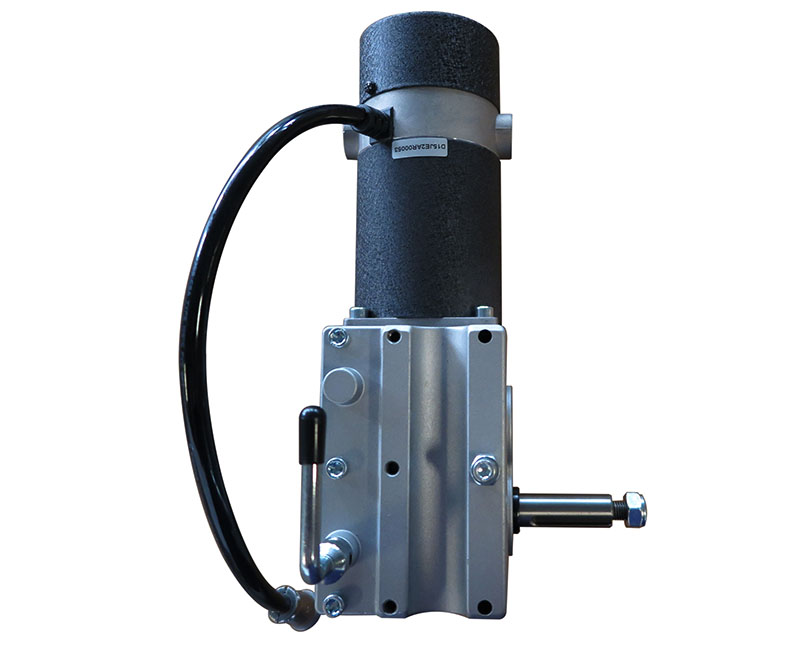

Taiwan Made Motor
